5500.2359 | SCHURTER

1-stage filter, 50 to 60 Hz, 16 A, 110 VAC, screw connection, 5500.2359

Order No.: 59P7362

EAN: 4099889070149

MPN:

5500.2359

Image may differ

Key Specification:

Version 1-stage filter

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 16 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

AC filter, 50 to 60 Hz, 16 A, 250 VAC, faston plug 6.3 mm, 5500.2637.01

Order No.: 59P7424

Manufacturer: SCHURTER

per pc. 28.4886 € *

Go to product

*plus VAT and shipping costs

Description

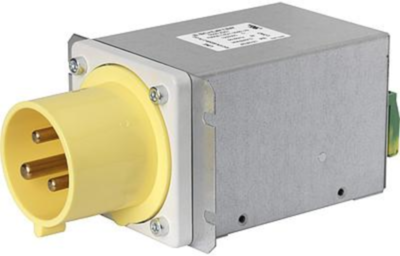

1-Phase line filter, 5500.2359, SCHURTER

The 5500.2359 is a 1-stage filter with 1-phase CEE connector. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

First CEE power entry module with filter
Easy prewired solution
Universal flange for front or rear mounting
Optimal filter position direct on the power entry
Protection against interference voltage from the mains
Suitable for equipment with detachable power cord

Technical specifications

	max. frequency	60 Hz
	Number of phases	1
	integrated switch	No
	Rated current	16 A
	With fuse	No
	Version	1-stage filter
	min. operating temperature	-40 °C
	Connection	screw connection
	Rated Voltage	110 VAC
	max. operating temperature	85 °C
	min. frequency	50 Hz
