5500.2270 | SCHURTER
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 400 µH, faston plug 6.3 mm, 5500.2270
Unit Price (€ / pc.)
63.6650 € *
Available: 10 pcs.
Total Price:
63.67 € *
Price list
Quantity
Price per unit*
1 pcs.
63.6650 €
5 pcs.
59.8332 €
20 pcs.
56.7987 €
50 pcs.
54.8709 €
150 pcs.
52.5742 €
*incl. VAT plus shipping costs
Subject to prior sale

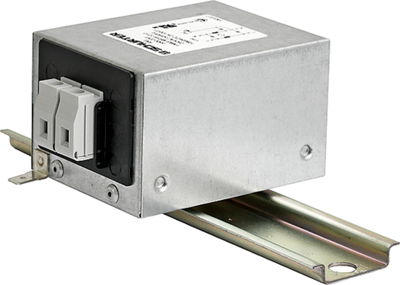

EMC filters 2-phase, for DIN rail mounting, type Schurter FMBB RAIL.
For applications in control cabinets; Rated current: 10 A. Capacitance: 2 x 0.4 mH. Leakage current: 0.25 mA. Frequency range: 10 kHz to 30 MHz. Permitted operating temperatures: –25 to +100 °C. Climate category: 25/100/21. Certifications: VDE, UL.
Type: 5500.2270, EMC filter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1 MΩ | |
| Inductance per line | 400 µH | |
| Capacity X|Y | X2 100 nF, Y2 1.5 nF | |
| Number of phases | 1 | |
| With fuse | Yes | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Version | AC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 5 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
