5500.2262 | SCHURTER
AC filter, 100 kHz to 30 Hz, 20 A, 250 VAC, 0.15 mH, screw/plug-in connection, 5500.2262
Unit Price (€ / pc.)
32.4632 € *
Standard delivery time from the manufacturer is: 22 Weeks
1-Phase AC/DC filter, 5500.2262, SCHURTER

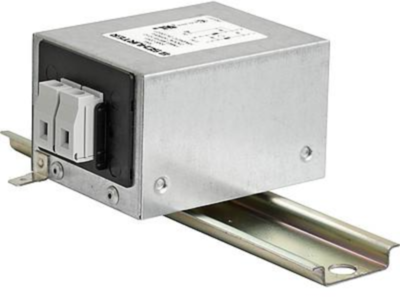

The 5500.2262 is an AC filter, DIN rail mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Protection against interference voltage from the mains
- Especially designed for electric switch and control cabinets
- Suitable for use in equipment
- High attenuation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw/plug-in connection | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 3.2 MΩ | |
| Inductance per line | 0.15 mH | |
| Capacity X|Y | X2 68 nF, Y2 22 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Version | AC filter | |
| max. frequency | 30 Hz | |
| min. frequency | 100 kHz | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | SK |
| MSL | MSL 1 |
| Original Packaging | Carton with 5 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
