5500.2261 | SCHURTER

AC filter, 100 kHz to 30 Hz, 10 A, 250 VAC, 1 mH, screw/plug-in connection, 5500.2261

Order No.: 59P7353
EAN: 4099889070057
MPN:
5500.2261
Series: FMAB RAIL

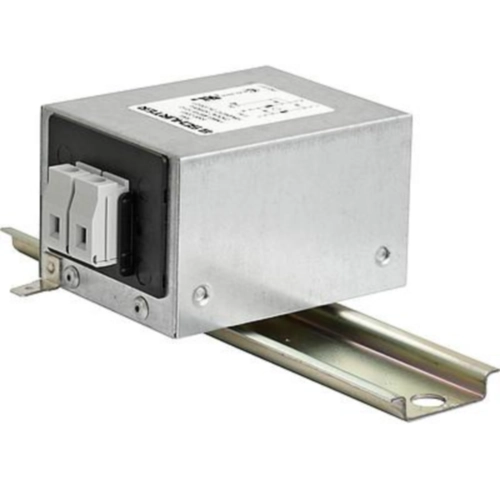

5500.2261 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
40.5909 € *
Available: 8 pcs.
Total Price:
40.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.5909 €

1-Phase AC/DC filter, 5500.2261, SCHURTER

The 5500.2261 is an AC filter, DIN rail mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Protection against interference voltage from the mains
  • Especially designed for electric switch and control cabinets
  • Suitable for use in equipment
  • High attenuation
Technical specifications
Filter Property Value
Rated Voltage 250 VAC
Number of phases 1
Connection screw/plug-in connection
Rated current 10 A
min. frequency 100 kHz
max. operating temperature 100 °C
Version AC filter
max. frequency 30 Hz
Capacity X|Y X2 68 nF, Y2 22 nF
Inductance per line 1 mH
With fuse No
ohmic resistance 8.5 MΩ
min. operating temperature -25 °C
Logistics
Property Value
Country of origin SK
Original Packaging Carton with 5 pieces
Customs tariff number 85363010
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
