5500.2130 | SCHURTER
AC filter, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, PCB connection, 5500.2130
Unit Price (€ / pc.)
8.0087 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
8.01 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0087 €
10 pcs.
7.2828 €
50 pcs.
6.5569 €
100 pcs.
5.9024 €
*incl. VAT plus shipping costs
Subject to prior sale

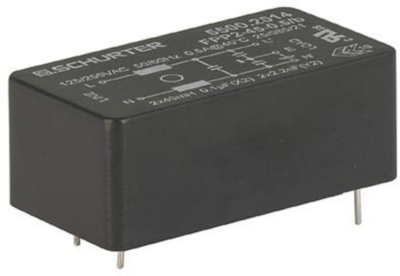

1-Phase line filter, 5500.2130, SCHURTER
The 5500.2130 is an AC filter for PCB mounting in flat housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | PCB connection | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 10 mH | |
| Capacity X|Y | X2 100 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -25 °C | |
| Version | AC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | LK |
| MSL | MSL 1 |
| Original Packaging | Carton with 70 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
