5500.2096 | SCHURTER

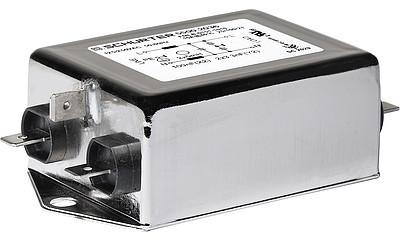

AC filter, 50 to 60 Hz, 16 A, 250 VAC, 2 mH, faston plug 6.3 mm, 5500.2096
Unit Price (€ / pc.)
28.6195 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
28.62 € *
Price list
Quantity
Price per unit*
1 pcs.
28.6195 €
10 pcs.
26.6203 €
25 pcs.
24.7520 €
50 pcs.
22.5267 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Phase line filter, 5500.2096, SCHURTER
The 5500.2096 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for universal industrial application
- High attenuation at maximum resp. asymmetric load independent from the line impedance
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 16 A | |
| Inductance per line | 2 mH | |
| Capacity X|Y | X2 100 nF, Y2 470 pF | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
