5500.2082 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 14 mH, faston plug 6.3 mm, 5500.2082
Unit Price (€ / pc.)
38.3061 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
38.31 € *
Price list
Quantity
Price per unit*
1 pcs.
38.3061 €
10 pcs.
35.6286 €
25 pcs.
33.1177 €
50 pcs.
30.4759 €
*incl. VAT plus shipping costs
Subject to prior sale

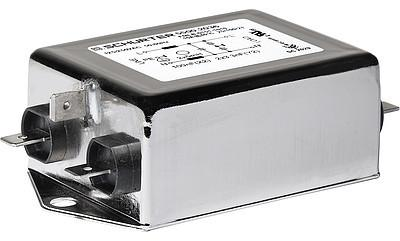

1-Phase line filter, 5500.2082, SCHURTER
The 5500.2082 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for universal industrial application
- High attenuation at maximum resp. asymmetric load independent from the line impedance
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 100 nF | |
| Rated current | 6 A | |
| max. operating temperature | 100 °C | |
| Version | AC filter | |
| Connection | faston plug 6.3 mm | |
| max. frequency | 60 Hz | |
| Inductance per line | 14 mH | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
| Country of origin | SK |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
