5500.2073 | SCHURTER
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 820 µH, faston plug 6.3 mm, 5500.2073
Unit Price (€ / pc.)
23.0622 € *
Standard delivery time from the manufacturer is: 19 Weeks

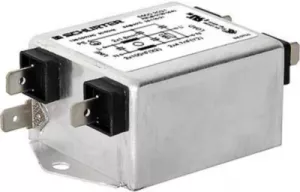

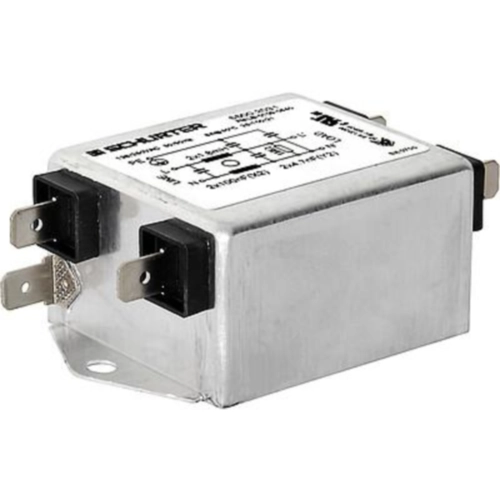

1-Phase line filter, 5500.2073, SCHURTER
The 5500.2073 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Compact design
- High attenuation at maximum resp. asymmetric load independent from the line impedance
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| Rated Voltage | 250 VAC | |
| Connection | faston plug 6.3 mm | |
| min. operating temperature | -25 °C | |
| Number of phases | 1 | |
| Version | AC filter | |
| Inductance per line | 820 µH | |
| Rated current | 10 A | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF | |
| ohmic resistance | 1 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
