5500.2066 | SCHURTER
AC filter, 50 to 60 Hz, 30 A, 250 VAC, 1.5 mH, screw connection, 5500.2066
Unit Price (€ / pc.)
101.2452 € *
Standard delivery time from the manufacturer is: 22 Weeks

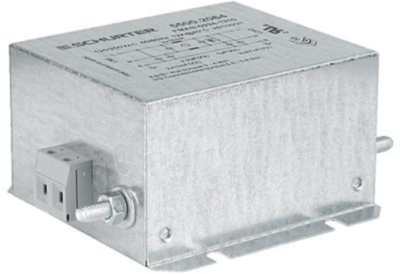

1-Phase line filter, 5500.2066, SCHURTER
The 5500.2066 is an AC filter, broad band attenuation. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for high current application
- High attenuation at maximum resp. asymmetric load independent from the line impedance
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | screw connection | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1 MΩ | |
| Inductance per line | 1.5 mH | |
| Capacity X|Y | X2 2.2 µF, Y2 15 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Version | AC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | SK |
| MSL | MSL 1 |
| Original Packaging | Carton with 2 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
