5500.2061 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 5500.2061
Unit Price (€ / pc.)
24.9067 € *
Next delivery: 10 pcs. on 2025-08-22

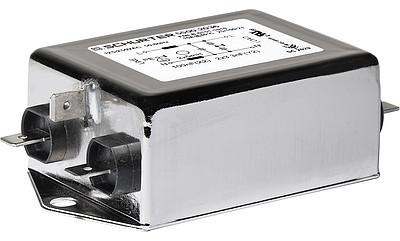

1-Phase line filter, 5500.2061, SCHURTER
The 5500.2061 is an AC filter 2-stage, very high symmetrical and asymmetrical attenuation. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for increased requirements
- 2-stage line filter with increased attenuation
- Protection against interference voltage from the mains
- Especially suitable for use in switching power supplies
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 6.3 mm | |
| With fuse | No | |
| Capacity X|Y | X 100 nF, Y1 22 nF, Y2 1 nF | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C | |
| Rated current | 6 A | |
| max. frequency | 60 Hz | |
| ohmic resistance | 1 MΩ | |
| Inductance per line | 800 µH | |
| integrated switch | No | |
| min. frequency | 50 Hz | |
| Version | AC filter | |
| Number of phases | 1 | |
| Rated Voltage | 250 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
