5500.2047 | SCHURTER

AC filter, 50 to 60 Hz, 20 A, 250 VAC, 150 µH, faston plug 6.3 mm, 5500.2047

Order No.: 59P7231

EAN: 4099889069075

MPN:

5500.2047

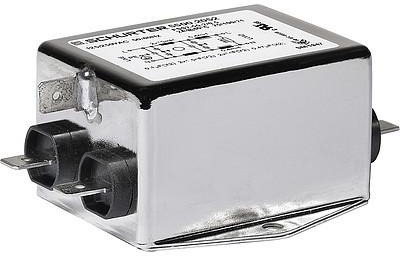

Image may differ

Key Specification:

Version AC filter

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 20 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

AC filter, 50 to 60 Hz, 20 A, 250 VAC, faston plug 6.3 mm, 5500.2638.01

Order No.: 59P7427

Manufacturer: SCHURTER

per pc. 27.8698 € *

Go to product

*incl. VAT plus shipping costs

Description

1-Phase line filter, 5500.2047, SCHURTER

The 5500.2047 is an AC filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

Designed for high current application
Protection against interference voltage from the mains
For standard and industrial application
Suitable for use in equipment

Technical specifications

Filter	Property	Value
	integrated switch	No
	Connection	faston plug 6.3 mm
	Rated Voltage	250 VAC
	Inductance per line	150 µH
	Capacity X\|Y	X2 68 nF, Y2 22 nF
	Number of phases	1
	With fuse	No
	max. operating temperature	100 °C
	min. operating temperature	-25 °C
	Version	AC filter
	max. frequency	60 Hz
	min. frequency	50 Hz
	Rated current	20 A
