5500.2046 | SCHURTER
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 1 mH, faston plug 6.3 mm, 5500.2046
Order No.: 59P7230
EAN: 4099889069068
MPN:
5500.2046
This item is no longer available.
As an alternative, we recommend the following item:
AC filter, 50 to 60 Hz, 10 A, 250 VAC, faston plug 6.3 mm, 5500.2635.01
Order No.: 59P7418
Manufacturer: SCHURTER
per pc. 13.9944 € *

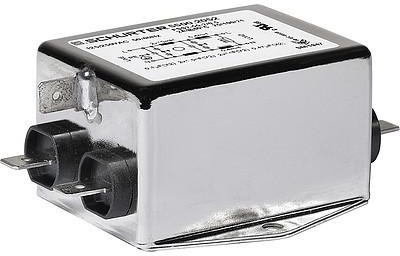

1-Phase line filter, 5500.2046, SCHURTER
The 5500.2046 is an AC filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for high current application
- Protection against interference voltage from the mains
- For standard and industrial application
- Suitable for use in equipment
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 10 A | |
| Inductance per line | 1 mH | |
| Capacity X|Y | X2 68 nF, Y2 22 nF | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
