5500.2038 | SCHURTER

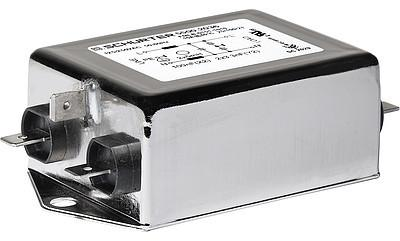

AC filter, 50 to 60 Hz, 20 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, 5500.2038
Unit Price (€ / pc.)
32.2728 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
32.27 € *
Price list
Quantity
Price per unit*
1 pcs.
32.2728 €
5 pcs.
30.0118 €
10 pcs.
27.9174 €
25 pcs.
25.6802 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Phase line filter, 5500.2038, SCHURTER
The 5500.2038 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for universal industrial application
- Protection against interference voltage from the mains
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 20 A | |
| Inductance per line | 1.5 mH | |
| Capacity X|Y | X2 100 nF, Y2 3.3 nF | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
