5500.2037 | SCHURTER
AC filter, 50 to 60 Hz, 16 A, 250 VAC, 2 mH, faston plug 6.3 mm, 5500.2037
Unit Price (€ / pc.)
28.7028 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
28.70 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7028 €
10 pcs.
26.6917 €
25 pcs.
24.8234 €
50 pcs.
22.8361 €
*incl. VAT plus shipping costs
Subject to prior sale

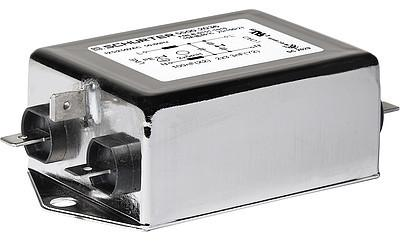

1-Phase line filter, 5500.2037, SCHURTER
The 5500.2037 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for universal industrial application
- Protection against interference voltage from the mains
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Version | AC filter | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 100 nF, Y2 3.3 nF | |
| max. operating temperature | 100 °C | |
| max. frequency | 60 Hz | |
| Inductance per line | 2 mH | |
| Connection | faston plug 6.3 mm | |
| Rated current | 16 A | |
| Number of phases | 1 | |
| With fuse | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
