5500.2025 | SCHURTER
AC filter, 50 to 60 Hz, 16 A, 250 VAC, 650 µH, PCB connection, 5500.2025
Unit Price (€ / pc.)
38.1157 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
38.12 € *
Price list
Quantity
Price per unit*
1 pcs.
38.1157 €
10 pcs.
35.4501 €
25 pcs.
32.9630 €
50 pcs.
30.3212 €
*incl. VAT plus shipping costs
Subject to prior sale

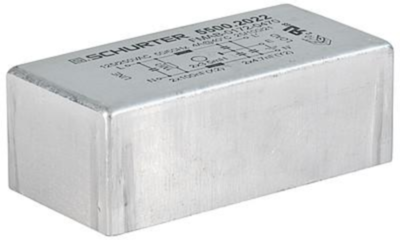

1-Phase line filter, 5500.2025, SCHURTER
The 5500.2025 is an AC filter for PCB mounting in flat aluminum housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Aluminum case provides good shielding
- Protection against interference voltage from the mains
- Universal line filter for standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| Rated Voltage | 250 VAC | |
| Connection | PCB connection | |
| min. operating temperature | -25 °C | |
| Number of phases | 1 | |
| Version | AC filter | |
| Inductance per line | 650 µH | |
| Rated current | 16 A | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF, Y2 4.7 nF | |
| ohmic resistance | 1 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
