5500.2009 | SCHURTER
AC filter, 50 to 60 Hz, 1 A, 250 VAC, 30 mH, PCB connection, 5500.2009
Unit Price (€ / pc.)
17.7429 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
17.74 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7429 €
10 pcs.
16.3268 €
50 pcs.
15.1725 €
100 pcs.
13.8159 €
*incl. VAT plus shipping costs
Subject to prior sale

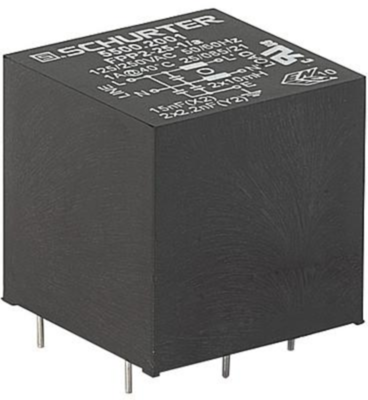

1-Phase line filter, 5500.2009, SCHURTER
The 5500.2009 is an AC filter for PCB mounting cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance per line | 30 mH | |
| min. frequency | 50 Hz | |
| Rated Voltage | 250 VAC | |
| With fuse | No | |
| Connection | PCB connection | |
| max. operating temperature | 85 °C | |
| Number of phases | 1 | |
| max. frequency | 60 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 47 nF, Y2 2.2 nF | |
| Version | AC filter | |
| integrated switch | No | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LK |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
