5500.2005 | SCHURTER

AC filter, 50 to 60 Hz, 700 mA, 250 VAC, 40 mH, PCB connection, 5500.2005

Order No.: 59P7193
EAN: 4099889068696
MPN:
5500.2005
Series: FPP-01

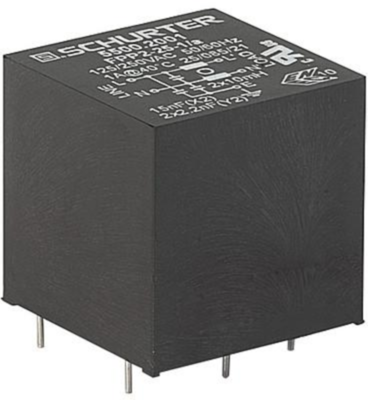

5500.2005 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
13.6017 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Total Price:
13.60 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6017 €
10 pcs.
12.5188 €
50 pcs.
11.5073 €
100 pcs.
10.4720 €
*incl. VAT plus shipping costs
**Subject to prior sale

1-Phase line filter, 5500.2005, SCHURTER

The 5500.2005 is an AC filter for PCB mounting cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Cost-saving plastic housing
  • Protection against interference voltage from the mains
  • For standard application
  • Suitable for use in equipment
Technical specifications
max. frequency 60 Hz
Number of phases 1
integrated switch No
Rated current 700 mA
Inductance per line 40 mH
Capacity X|Y X2 15 nF, Y2 2.2 nF
With fuse No
Version AC filter
min. operating temperature -25 °C
Connection PCB connection
Rated Voltage 250 VAC
max. operating temperature 85 °C
min. frequency 50 Hz
Logistics
Country of origin LK
Customs tariff number 85363010
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
