5500.2004 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, PCB connection, 5500.2004
Unit Price (€ / pc.)
7.2352 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
7.24 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2352 €
10 pcs.
6.5807 €
50 pcs.
6.0571 €
100 pcs.
5.4502 €
*incl. VAT plus shipping costs
Subject to prior sale

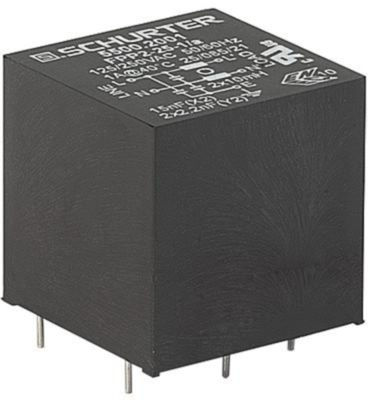

1-Phase line filter, 5500.2004, SCHURTER
The 5500.2004 is an AC filter for PCB mounting cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Version | AC filter | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 15 nF, Y2 2.2 nF | |
| max. operating temperature | 85 °C | |
| max. frequency | 60 Hz | |
| Inductance per line | 800 µH | |
| Connection | PCB connection | |
| Rated current | 6 A | |
| Number of phases | 1 | |
| With fuse | No |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
| Country of origin | LK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
