5500.2001 | SCHURTER

AC filter, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, PCB connection, 5500.2001

Order No.: 59P7189
EAN: 4099889068658
MPN:
5500.2001
Series: FPP-01

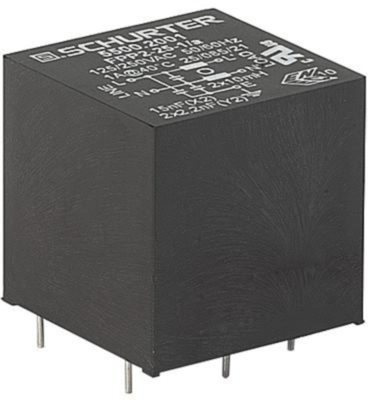

5500.2001 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
8.6275 € *
Available: 57 pcs.
Total Price:
8.63 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6275 €
10 pcs.
7.8540 €
50 pcs.
7.1519 €
100 pcs.
6.4379 €
*incl. VAT plus shipping costs
Subject to prior sale

1-Phase line filter, 5500.2001, SCHURTER

The 5500.2001 is an AC filter for PCB mounting cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Cost-saving plastic housing
  • Protection against interference voltage from the mains
  • For standard application
  • Suitable for use in equipment
Technical specifications
Filter Property Value
Rated Voltage 250 VAC
Number of phases 1
Connection PCB connection
Rated current 1 A
min. frequency 50 Hz
max. operating temperature 85 °C
Version AC filter
integrated switch No
max. frequency 60 Hz
Capacity X|Y X2 15 nF, Y2 2.2 nF
Inductance per line 10 mH
With fuse No
min. operating temperature -25 °C
Logistics
Property Value
Country of origin LK
Customs tariff number 85363010
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
