5500.2000 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 40 mH, PCB connection, 5500.2000
Unit Price (€ / pc.)
8.6989 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
8.70 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6989 €
10 pcs.
7.9135 €
50 pcs.
7.1995 €
100 pcs.
6.4855 €
*incl. VAT plus shipping costs
Subject to prior sale

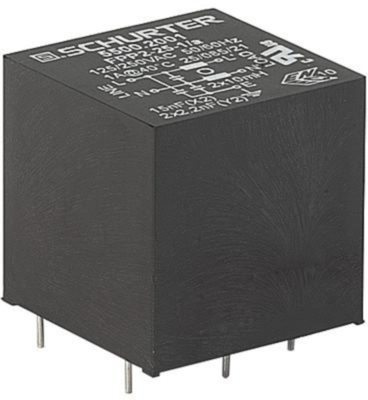

1-Phase line filter, 5500.2000, SCHURTER
The 5500.2000 is an AC filter for PCB mounting cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
Filter | Property | Value |
---|---|---|
Connection | PCB connection | |
Capacity X|Y | X2 15 nF, Y2 2.2 nF | |
Number of phases | 1 | |
max. frequency | 60 Hz | |
min. frequency | 50 Hz | |
max. operating temperature | 85 °C | |
Inductance per line | 40 mH | |
min. operating temperature | -25 °C | |
Rated Voltage | 250 VAC | |
Version | AC filter | |
Rated current | 6 A | |
With fuse | No | |
integrated switch | No |
Download
Logistics
Property | Value |
---|---|
Country of origin | LK |
Customs tariff number | 85363010 |
MSL | MSL 1 |
Compliance
Property | Value |
---|---|
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
