5500.1055.1 | SCHURTER
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 400 µH, PCB connection, 5500.1055.1
Unit Price (€ / pc.)
12.3879 € *
Standard delivery time from the manufacturer is: 10 Weeks

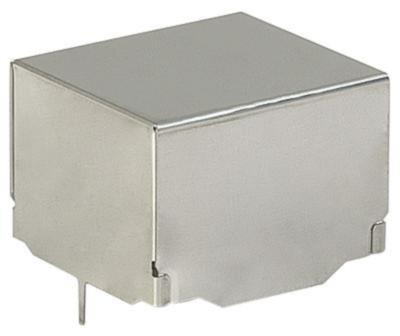

1-Phase line filter, 5500.1055.1, SCHURTER
The 5500.1055.1 is an AC filter for PCB mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Suitable for use in equipment
- Suitable for use in medical equipment
- Standard and medical version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 10 A | |
| Inductance per line | 400 µH | |
| Capacity X|Y | X2 47 nF, Y2 2.2 nF | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -25 °C | |
| Connection | PCB connection | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
