5500.0855.3 | SCHURTER
AC filter, 50 to 60 Hz, 8 A, 250 VAC, 600 µH, PCB connection, 5500.0855.3
Unit Price (€ / pc.)
15.0773 € *
Standard delivery time from the manufacturer is: 10 Weeks

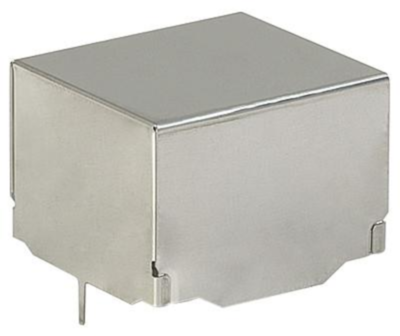

1-Phase line filter, 5500.0855.3, SCHURTER
The 5500.0855.3 is an AC filter for PCB mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Suitable for use in equipment
- Suitable for use in medical equipment
- Standard and medical version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| Rated Voltage | 250 VAC | |
| Connection | PCB connection | |
| min. operating temperature | -25 °C | |
| Number of phases | 1 | |
| Version | AC filter | |
| Inductance per line | 600 µH | |
| Rated current | 8 A | |
| integrated switch | No | |
| Capacity X|Y | X2 47 nF | |
| ohmic resistance | 1 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Original Packaging | Carton with 100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
