5500.0455.3 | SCHURTER
AC filter, 50 to 60 Hz, 4 A, 250 VAC, 1.6 mH, PCB connection, 5500.0455.3
Unit Price (€ / pc.)
15.0773 € *
Standard delivery time from the manufacturer is: 10 Weeks

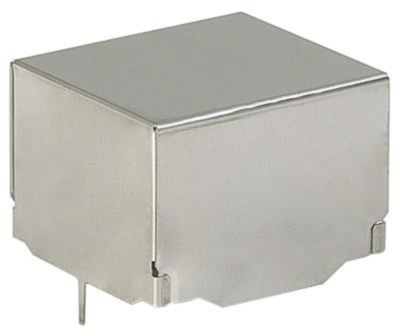

1-Phase line filter, 5500.0455.3, SCHURTER
The 5500.0455.3 is an AC filter for PCB mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Suitable for use in equipment
- Suitable for use in medical equipment
- Standard and medical version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 250 VAC | |
| Number of phases | 1 | |
| Connection | PCB connection | |
| Rated current | 4 A | |
| min. frequency | 50 Hz | |
| max. operating temperature | 85 °C | |
| Version | AC filter | |
| integrated switch | No | |
| max. frequency | 60 Hz | |
| Capacity X|Y | X2 47 nF | |
| Inductance per line | 1.6 mH | |
| With fuse | No | |
| ohmic resistance | 1 MΩ | |
| min. operating temperature | -25 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
