5500.0455.1 | SCHURTER
AC filter, 50 to 60 Hz, 4 A, 250 VAC, 1.6 mH, PCB connection, 5500.0455.1
Unit Price (€ / pc.)
12.7568 € *
Standard delivery time from the manufacturer is: 10 Weeks

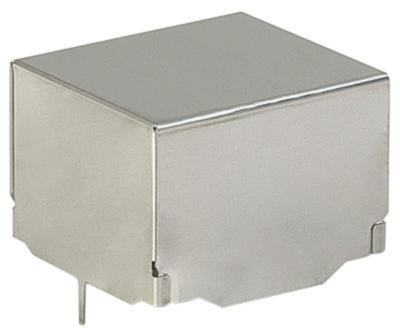

1-Phase line filter, 5500.0455.1, SCHURTER
The 5500.0455.1 is an AC filter for PCB mounting. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Suitable for use in equipment
- Suitable for use in medical equipment
- Standard and medical version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Version | AC filter | |
| Connection | PCB connection | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. frequency | 60 Hz | |
| Rated Voltage | 250 VAC | |
| Number of phases | 1 | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 47 nF, Y2 2.2 nF | |
| integrated switch | No | |
| Inductance per line | 1.6 mH | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | RO |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
