5424.4153.151 | SCHURTER

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 2 W, 1.6 mH, faston plug 6.3 mm, 5424.4153.151

Order No.: 59P7155

EAN: 4099889068313

MPN:

5424.4153.151

Image may differ

Key Specification:

Version IEC plug C14

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 4 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.6 mH, faston plug 6.3 mm, 5411.4253.103

Order No.: 59P7128

Manufacturer: SCHURTER

per pc. 46.1363 € *

Go to product

*incl. VAT plus shipping costs

Description

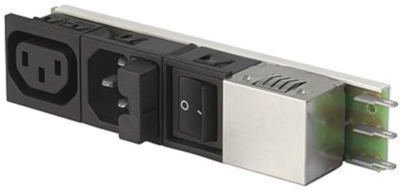

IEC appliance inlet, 5424.4153.151, SCHURTER

The 5424.4153.151 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

Modular component selection
Individual components soldered on a printed circuit board
Plug removal necessary for fuse-link replacement
Fully insulated from the rear
Snap-in version front side
Suitable for use in medical equipment

Technical specifications

Filter	Property	Value
	integrated switch	Yes
	Connection	faston plug 6.3 mm
	Rated Voltage	250 VAC
	Power	2 W
	Inductance per line	1.6 mH
	Capacity X\|Y	X2 47 nF, Y2 2.2 nF
	With fuse	Yes
	max. operating temperature	85 °C
	min. operating temperature	-25 °C
	Version	IEC plug C14
	max. frequency	60 Hz
	min. frequency	50 Hz
	Rated current	4 A
