5421.2051.201 | SCHURTER

IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, solder connection, 5421.2051.201

Order No.: 59P7132

EAN: 4099889068092

MPN:

5421.2051.201

Image may differ

Key Specification:

Version IEC plug C14

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 2 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.6 mH, faston plug 6.3 mm, 5411.4253.103

Order No.: 59P7128

Manufacturer: SCHURTER

per pc. 44.7916 € *

Go to product

*plus VAT and shipping costs

Description

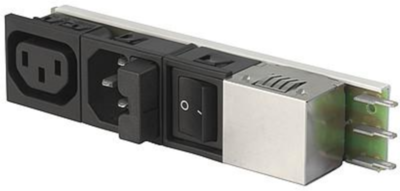

IEC appliance inlet, 5421.2051.201, SCHURTER

The 5421.2051.201 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

Modular component selection
Individual components soldered on a printed circuit board
Plug removal necessary for fuse-link replacement
Fully insulated from the rear
Snap-in version front side
Suitable for use in medical equipment

Technical specifications

	max. frequency	60 Hz
	integrated switch	No
	Rated current	2 A
	Inductance per line	4 mH
	Capacity X\|Y	X2 47 nF, Y2 2.2 nF
	With fuse	No
	Version	IEC plug C14
	min. operating temperature	-25 °C
	Connection	solder connection
	Rated Voltage	250 VAC
	max. operating temperature	85 °C
	min. frequency	50 Hz
