5200.0143.3 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 2 W, 11 mH, faston plug 6.3 mm, 5200.0143.3
Unit Price (€ / pc.)
25.1090 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
25.11 € *
Price list
Quantity
Price per unit*
1 pcs.
25.1090 €
10 pcs.
23.0979 €
25 pcs.
21.2415 €
50 pcs.
19.3375 €
*incl. VAT plus shipping costs
Subject to prior sale

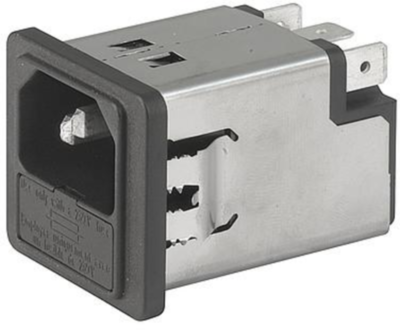

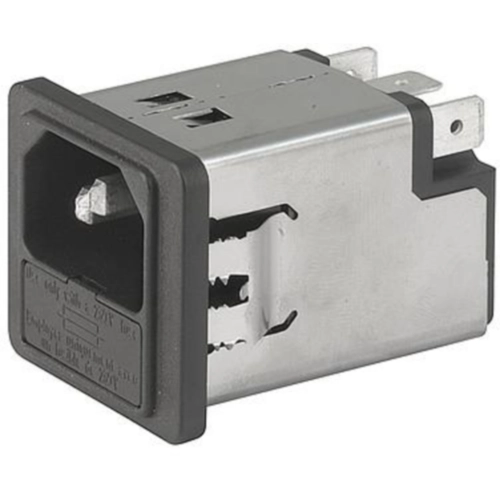

IEC appliance inlet, 5200.0143.3, SCHURTER
The 5200.0143.3 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Recessed faston connector
- High quality filter case made of stainless steel
- Highly resistant since potted filter
- Plug removal necessary for fuse-link replacement
- Standard and medical version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 2 W | |
| Inductance per line | 11 mH | |
| min. frequency | 50 Hz | |
| Rated Voltage | 250 VAC | |
| With fuse | Yes | |
| Connection | faston plug 6.3 mm | |
| max. operating temperature | 85 °C | |
| Number of phases | 1 | |
| max. frequency | 60 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 47 nF | |
| ohmic resistance | 1 MΩ | |
| Version | IEC plug C14 | |
| integrated switch | No | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
