4303.5003 | SCHURTER

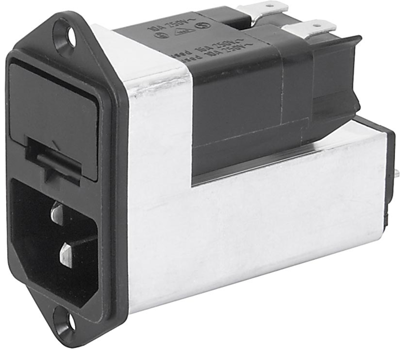

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 4.8 mm, 4303.5003
Unit Price (€ / pc.)
31.2375 € *
Available: 30 pcs.
Total Price:
31.24 € *
Price list
Quantity
Price per unit*
1 pcs.
31.2375 €
10 pcs.
27.4890 €
20 pcs.
26.7512 €
40 pcs.
25.9896 €
160 pcs.
24.5021 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC filters with add-on function combination series KFC, type Schurter 4303.
Consists of the filter, a double-pole fuse holder cartridge, IEC appliance connector with protection class 1 and touch-proof G fuse holder 5.0 x 20 mm or US-type fuse holder 6.3 x 32 mm; Mounting position: vertical. Color: black. Rated voltage: 250 VAC 50/60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 4.8 mm tab terminals. Certifications: ENEC 10, VDE, UL.
Technical attributes (type, rated current, rated inductance): 4303.5003, 4.0 A, 2 x 1.5 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 4.8 mm | |
| Capacity X|Y | X2 68 nF, Y2 2.2 nF | |
| Number of phases | 1 | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| max. operating temperature | 85 °C | |
| Inductance per line | 1.5 mH | |
| min. operating temperature | -25 °C | |
| Rated Voltage | 250 VAC | |
| Version | IEC plug C14 | |
| Rated current | 4 A | |
| With fuse | Yes | |
| integrated switch | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
