4302.5337 | SCHURTER
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4302.5337
Unit Price (€ / pc.)
33.4509 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
33.45 € *
Price list
Quantity
Price per unit*
1 pcs.
33.4509 €
5 pcs.
31.1066 €
10 pcs.
28.9408 €
25 pcs.
26.6203 €
*incl. VAT plus shipping costs
Subject to prior sale

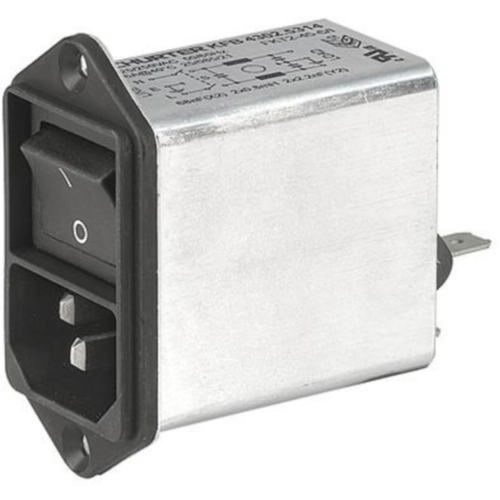

IEC appliance inlet, 4302.5337, SCHURTER
The 4302.5337 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Line switch non-illuminated
- Line Switch 2-pole
- With EMC-shield
- Screw-on mounting front side
- Suitable for use in medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | Yes | |
| Rated current | 6 A | |
| Inductance per line | 800 µH | |
| Capacity X|Y | X2 68 nF | |
| With fuse | No | |
| Version | IEC plug C14 | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
