3-138-348 | SCHURTER

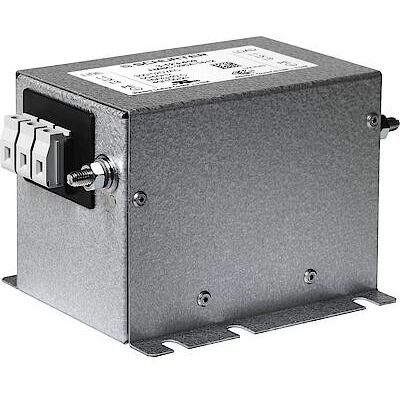

2-stage filter, 50 to 60 Hz, 64 A, 760 VAC, screw connection, 3-138-348
Unit Price (€ / pc.)
181.5226 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
2-stage filter, 3-138-348, SCHURTER
Features
- Terminals for three phases and ground
- 2 stage
- Very high attenuation
- Compact design with small footprint
- Wide temperature range
Applications
- Frequency Converters
- Stepper Motor Drives
- UPS-Systems
- Inverters
- Suitable for use in equipment
Technical specifications
| ohmic resistance | 0.9 mΩ | |
| Connection | screw connection | |
| Number of phases | 3 | |
| Version | 2-stage filter | |
| Rated Voltage | 760 VAC | |
| integrated switch | No | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| Rated current | 64 A |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
