3-138-289 | SCHURTER
Filter, 50 to 60 Hz, 110 A, 300/520 VAC, screw connection, 3-138-289
Unit Price (€ / pc.)
316.8851 € *
Available: 0 pcs.
Leadtime: On Request **

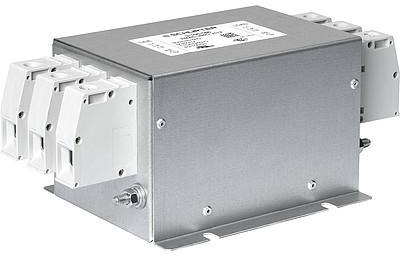

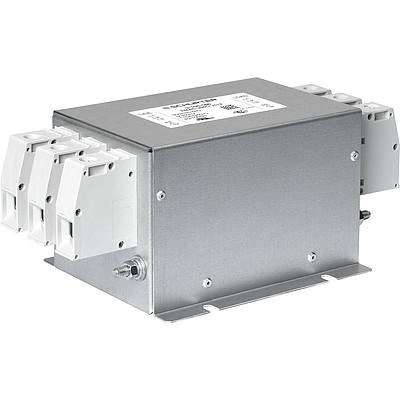

Single-stage filter, 3-138-289, SCHURTER
Features
- Compact design with small footprint
- Single-stage filter for high efficiency
- Light weight design
- Wide temperature range
- Very high attenuation
Applications
- Frequency converters
- Stepper motor drives
- UPS-Systems
- Inverters
- Suitable for use in equipment
Technical specifications
| ohmic resistance | 0.4 mΩ | |
| Connection | screw connection | |
| Number of phases | 3 | |
| Version | 1-stage filter | |
| Rated Voltage | 300/520 VAC | |
| integrated switch | No | |
| max. frequency | 60 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -40 °C | |
| With fuse | No | |
| Rated current | 110 A |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
