SCHURTER

3-123-485 | SCHURTER

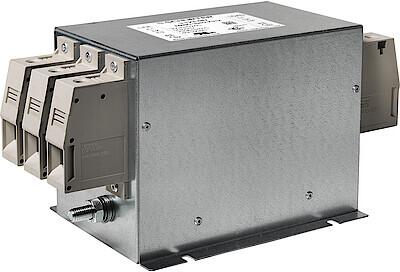

2-stage filter, 50 to 60 Hz, 110 A, 520 VAC, 6.1 W, screw connection, 3-123-485

default S
default L
Total price
(289.06 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
289.06 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

3-Phase AC/DC filter, 3-123-485, SCHURTER

The 3-123-485 is a 2-stage filter for 3-phase system. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with small footprint
  • Double-stage filter for high attenuation
  • High voltage version
  • Wide temperature range
  • Especially designed for industrial application

Applications

  • Protection against interference voltage from the mains
  • Frequency converters
  • Stepper motor drive
  • UPS-system
  • Suitable for use in equipment
Technical specifications
ohmic resistance 0.0005 Ω
Connection screw connection
Number of phases 3
Version 2-stage filter
Rated Voltage 520 VAC
integrated switch No
Power 6.1 W
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -40 °C
With fuse No
Rated current 110 A
Show similar products (0)
Logistics
Country of origin RO
Customs tariff number 85363010
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 9 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
2-stage filter, 50 to 60 Hz, 25 A, 520 VAC, 2.1 W, screw connection, 3-123-460
Order No.:
 75D3761
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-460
10 pcs.
101.96 €
0.00 € *
Currently not in stock, we will order for you
0.0034 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
25 A
0.00005 MHz
2.1 W
2-stage filter, 50 to 60 Hz, 36 A, 520 VAC, 2.2 W, screw connection, 3-123-461
Order No.:
 75D3762
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-461
10 pcs.
105.81 €
0.00 € *
Currently not in stock, we will order for you
0.0017 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
36 A
0.00005 MHz
2.2 W
2-stage filter, 50 to 60 Hz, 110 A, 520 VAC, 6.1 W, screw connection, 3-123-485
Order No.:
 75D3766
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-485
1 pcs.
289.06 €
0.00 € *
Currently not in stock, we will order for you
0.0005 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
110 A
0.00005 MHz
6.1 W
2-stage filter, 50 to 60 Hz, 80 A, 520 VAC, 7.7 W, screw connection, 3-123-484
Order No.:
 75D3765
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-484
3 pcs.
211.62 €
0.00 € *
Currently not in stock, we will order for you
0.0012 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
80 A
0.00005 MHz
7.7 W
2-stage filter, 50 to 60 Hz, 180 A, 520 VAC, 12.9 W, screw connection, 3-123-486
Order No.:
 75D3767
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-486
1 pcs.
393.45 €
0.00 € *
Currently not in stock, we will order for you
0.0004 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
180 A
0.00005 MHz
12.9 W
2-stage filter, 50 to 60 Hz, 230 A, 520 VAC, 15.8 W, screw connection, 3-123-487
Order No.:
 75D3768
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-487
1 pcs.
455.92 €
0.00 € *
Currently not in stock, we will order for you
0.0003 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
230 A
0.00005 MHz
15.8 W
2-stage filter, 50 to 60 Hz, 64 A, 520 VAC, 6.9 W, screw connection, 3-123-483
Order No.:
 75D3764
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-483
5 pcs.
158.01 €
0.00 € *
Currently not in stock, we will order for you
0.0017 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
64 A
0.00005 MHz
6.9 W
2-stage filter, 50 to 60 Hz, 50 A, 520 VAC, 4.2 W, screw connection, 3-123-482
Order No.:
 75D3763
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-482
10 pcs.
107.73 €
0.00 € *
Currently not in stock, we will order for you
0.0017 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
50 A
0.00005 MHz
4.2 W
2-stage filter, 50 to 60 Hz, 16 A, 520 VAC, 1.6 W, screw connection, 3-123-459
Order No.:
 75D3760
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-123-459
10 pcs.
90.43 €
0.00 € *
Currently not in stock, we will order for you
0.0062 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
16 A
0.00005 MHz
1.6 W
*incl. VAT plus shipping costs
