3-110-813 | SCHURTER

1-stage filter, 50 to 60 Hz, 3 A, 300/520 VAC, screw connection, 3-110-813

Order No.: 71D9003
EAN: 4099889076967
MPN:
3-110-813
Series: FMAD CP

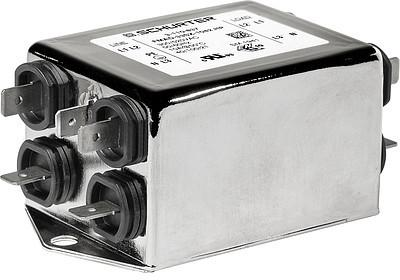

3-110-813 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
19.278 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
19.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.278 €

3-Phase AC/DC filter, 3-110-813, SCHURTER

The 3-110-813 is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact single-stage filter
  • Various filter variants
  • Light weight design
  • Wide temperature range

Applications

  • For low power 3 phase energy inverter such as photovoltaic or battery storage system
  • Suitable for use in equipment
Technical specifications
Filter Property Value
max. frequency 60 Hz
Number of phases 1
integrated switch No
Rated current 3 A
With fuse No
Version 1-stage filter
min. operating temperature -40 °C
Connection screw connection
Rated Voltage 300/520 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 78.9 mΩ
Logistics
Property Value
Country of origin RO
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
