3-109-432 | SCHURTER

1-stage filter, 50 to 60 Hz, 12 A, 277 V (DC), 277 VAC, faston plug 6.3 mm, 3-109-432

Order No.: 75D0124
EAN: 4099891554811
MPN:
3-109-432
Series: FMAB HV

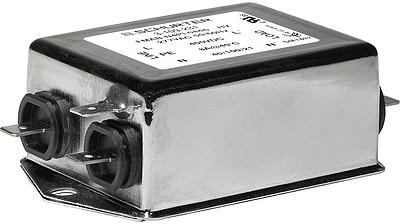

3-109-432 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
16.5291 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
16.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.5291 €

1-stage filter, 3-109-432, SCHURTER

Features

  • Compact filter with high symmetrical attenuation
  • For high AC- or DC-voltages
  • Completely enclosed steel housing
  • Optional overvoltage protection

Applications

  • Suitable for appliances with protection class I
  • Especially designed for applications with symmetrical noise caused by switching semiconductors
  • Suitable for use in equipment
  • Suitable for use in medical equipment
Technical specifications
Rated voltage (DC) 277 V
max. frequency 60 Hz
Number of phases 1
integrated switch No
Rated current 12 A
With fuse No
Version 1-stage filter
min. operating temperature -40 °C
Connection faston plug 6.3 mm
Rated Voltage 277 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
Logistics
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
