3-109-232 | SCHURTER

1-stage filter, 50 to 60 Hz, 10 A, 277 V (DC), 277 VAC, faston plug 6.3 mm, 3-109-232

Order No.: 75D0105
EAN: 4099891554620
MPN:
3-109-232
Series: FMAB HV

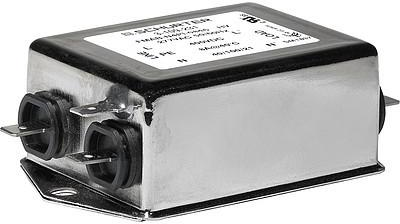

3-109-232 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
28.4648 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
28.46 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4648 €
10 pcs.
26.4775 €
25 pcs.
24.6211 €
50 pcs.
22.6576 €
*incl. VAT plus shipping costs
Subject to prior sale

1-stage filter, 3-109-232, SCHURTER

Features

  • Compact filter with high symmetrical attenuation
  • For high AC- or DC-voltages
  • Completely enclosed steel housing
  • Optional overvoltage protection

Applications

  • Suitable for appliances with protection class I
  • Especially designed for applications with symmetrical noise caused by switching semiconductors
  • Suitable for use in equipment
Technical specifications
Rated voltage (DC) 277 V
max. frequency 60 Hz
Number of phases 1
integrated switch No
Rated current 10 A
With fuse No
Version 1-stage filter
min. operating temperature -40 °C
Connection faston plug 6.3 mm
Rated Voltage 277 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
Logistics
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
