3-103-707 | SCHURTER

2-stage filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 2.5 W, spring-cage terminal, 3-103-707

Order No.: 75D2010
EAN: 4099891555528
MPN:
3-103-707
Series: FPBB RAIL

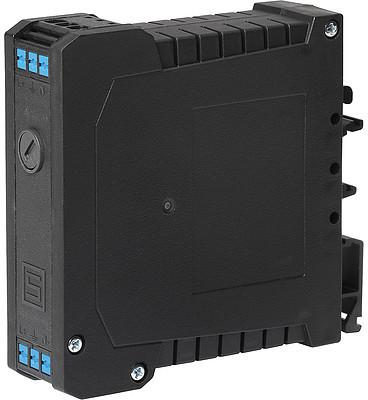

3-103-707 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
47.6952 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
47.70 € *
Price list
Quantity
Price per unit*
1 pcs.
47.6952 €
5 pcs.
44.8273 €
10 pcs.
41.6857 €
25 pcs.
38.3537 €
*incl. VAT plus shipping costs
Subject to prior sale

1-Phase line filter, 3-103-707, Schurter

AC/DC filter, 2-stage, DIN rail mounting, overcurrent and overvoltage protection

Features

  • Very high attenuation
  • Surge protection
  • Fuseholder
  • Especially designed for electric switch and control cabinets
  • Suitable for medical equipment intended for permanently connection to the mains
Technical specifications
Filter Property Value
Connection spring-cage terminal
Number of phases 1
Rated voltage (DC) 250 V
max. frequency 60 Hz
Power 2.5 W
min. frequency 50 Hz
max. operating temperature 100 °C
min. operating temperature -40 °C
Rated Voltage 250 VAC
Version 2-stage filter
Rated current 6 A
With fuse Yes
ohmic resistance 40 mΩ
integrated switch No
Logistics
Property Value
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
