7093.0110 | SCHURTER
Fuse holder, 6.3 x 32 mm, 16 A, 250 V, central Mounting, 7093.0110
Unit Price (€ / pc.)
40.6266 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
40.63 € *
Price list
Quantity
Price per unit*
1 pcs.
40.6266 €
10 pcs.
35.7476 €
20 pcs.
34.7718 €
40 pcs.
33.8079 €
160 pcs.
31.8563 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, 7093.0110, SCHURTER

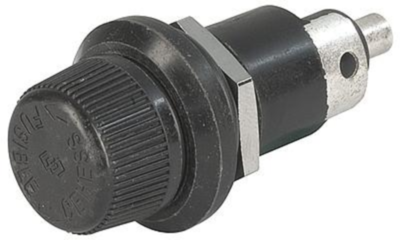

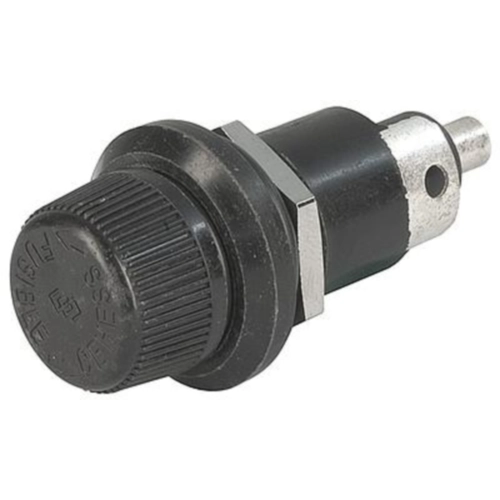

Shock-safe fuse-holder with fingergrip cap, fuse-link: 6.3 x 32 mm, IP 68.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 18 mm | |
| Type of mounting | central Mounting | |
| Version of the cap | finger grip | |
| Degree of protection (IP) | IP68 | |
| Connection | solder connection | |
| Rated current | 16 A | |
| Version | closed | |
| For Fuse | 6.3 x 32 mm | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
