3101.0055 | SCHURTER

Fuse holder, 5 x 20 mm, 10 A, 250 V, PCB mounting, 3101.0055

Order No.: 46G5862
EAN: 4099889126877
MPN:
3101.0055
Series: FPG5

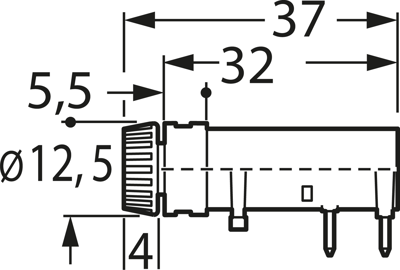

3101.0055 SCHURTER Fuse Holders Image 1
3101.0055 SCHURTER Fuse Holders Image 2
Image may differ
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Next delivery: 154 pcs. on 2025-05-02
Leadtime: 6 Weeks **
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
10 pcs.
2.0111 €
100 pcs.
1.7136 €
500 pcs.
1.4994 €
1000 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fuse holders for 5 x 20 mm G fuses, series FPG5, type Schurter 3101.

Compliant with IEC 60127-6, for axial PCB mounting, bayonet lock cap with slot or finger grip; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 compliant with IEC 60068-1. Certifications: VDE, UL, CSA.

Technical attributes (type, bayonet lock cap version): 3101.0055, finger grip

Technical specifications
For Fuse 5 x 20 mm
Version geschlossen
Connection Lötanschluss
Type of mounting Leiterplattenmontage
Installation diameter 12.5 mm
Version of the cap Fingergrip
Rated current 10 A
Rated voltage 250 V
Touch protection PC2
Degree of protection (IP) IP40
Logistics
Country of origin CH
Customs tariff number 85363010
Original Packaging Karton mit 100 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
