0751.0100 | SCHURTER

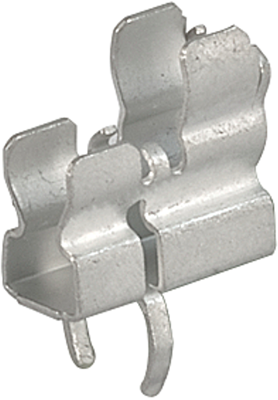

Fuse holder clip, 5 x 20 mm/6.3 x 32 mm, 10 A, 500 V, PCB mounting, 0751.0100
Unit Price (€ / pc.)
0.3332 € *
Available: 137 pcs.
Next delivery: 1,788 pcs. on 2025-11-28
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
10 pcs.
0.3213 €
50 pcs.
0.2975 €
100 pcs.
0.2582 €
1000 pcs.
0.2178 €
2000 pcs.
0.1987 €
*incl. VAT plus shipping costs
Subject to prior sale
Clips for G fuses sizes 5 x 20 mm or 6.3 x 32 mm, series OG (Clip) 5x20 / 6.3x32, type Schurter 0751.
Compliant with IEC 60127-6, for holding 5 x 20 mm or 6.3 x 32 mm, fuses, with beaded terminals; Rated voltage: 500 VAC. Rated current: 10 A. Material: tinned brass. Climate category: 40/085/21 compliant with IEC 60068-1. Note: you need to order 2 clips per fuse holder.
Type: 0751.0100, single clip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 500 V | |
| Connection | solder connection | |
| For Fuse | 5 x 20 mm/6.3 x 32 mm | |
| Type of mounting | PCB mounting | |
| Version | open | |
| Installation diameter | 5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1,000 pieces |
| Country of origin | CH |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
