0091.0004 | SCHURTER
Fuse holder, 10.3 x 38 mm, 30 A, 600 V, DIN rail, 0091.0004
Unit Price (€ / pc.)
38.2704 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
38.27 € *
Price list
Quantity
Price per unit*
1 pcs.
38.2704 €
10 pcs.
35.2121 €
25 pcs.
32.3918 €
50 pcs.
29.4763 €
*incl. VAT plus shipping costs
Subject to prior sale

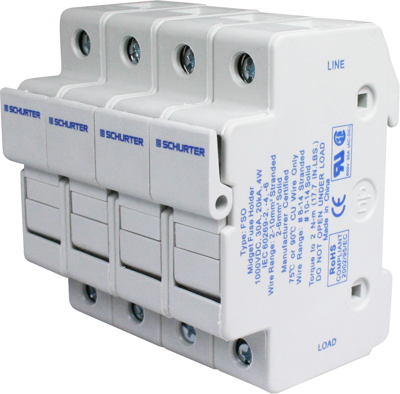

Fuse holder, 0091.0004, SCHURTER
Touch-safe fuse-holder for fuses up to 100 kA interrupting rating, fuse-link: 10.3 x 38 mm, 1000 VDC, 4 pole, mountable on 35 mm DIN-Rail.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 30 A | |
| For Fuse | 10.3 x 38 mm | |
| Type of mounting | DIN rail | |
| Rated voltage | 600 V | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 3 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
