0031.3803 | SCHURTER
Fuse holder, 5 x 20 mm/6.3 x 32 mm, 10 A, 250 V, PCB mounting, 0031.3803
Unit Price (€ / pc.)
2.1301 € *
Available: 117 pcs.
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
25 pcs.
1.7969 €
100 pcs.
1.6660 €
200 pcs.
1.6065 €
800 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders for 5 x 20 mm or 6.3 x 32 mm G fuses, series FAC, type Schurter 0031.

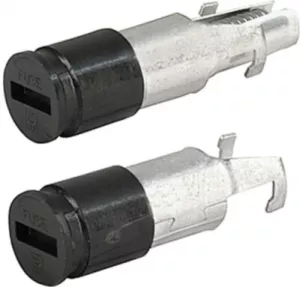

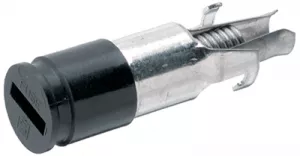

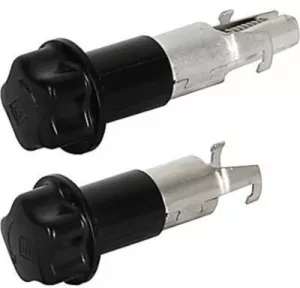

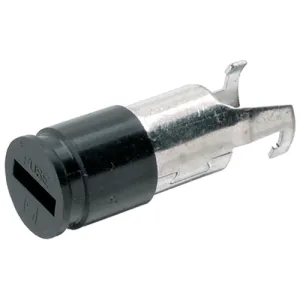

Compliant with IEC 60127-6, for radial PCB mounting, the bayonet lock cap size determines the size of the fuse to insert; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 VDC0, black. Connections: tinned copper alloy. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 compliant with IEC 60068-1. Certifications: VDE, UL, CSA. The bayonet lock caps must be installed and are available on separate order.

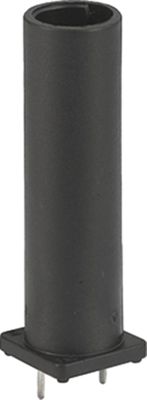

Type: 0031.3803, holder without cap
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| For Fuse | 5 x 20 mm/6.3 x 32 mm | |
| Touch protection | PC2 | |
| Version of the cap | slotted | |
| Type of mounting | PCB mounting | |
| Rated voltage | 250 V | |
| Connection | solder connection | |
| Degree of protection (IP) | IP40 | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
