0031.2560 | SCHURTER
Fuse holder, 5 x 20 mm, 16 A, 500 V, PCB mounting, 0031.2560
Unit Price (€ / pc.)
9.6866 € *
Standard delivery time from the manufacturer is: 10 Weeks

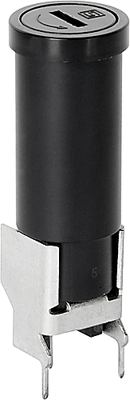

Fuse holder, 0031.2560, SCHURTER
Shock-safe fuse-holder with slotted cap, fuse-link: 5 x 20 mm, high rated power acceptance, drilling diagram (FUP and FUA), IP 40.
Applications
- Equipment with three-phase supply (400 VAC)
- Applications with rated current up to 16 A (VDE)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Version | closed | |
| Connection | solder connection | |
| Type of mounting | PCB mounting | |
| Installation diameter | 19 mm | |
| Version of the cap | slotted | |
| Rated current | 16 A | |
| Rated voltage | 500 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 25 pieces |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
