0031.1914 | SCHURTER

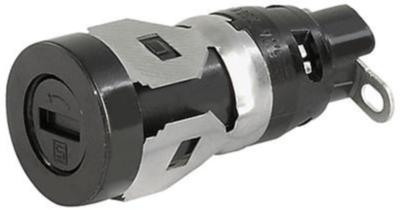

Fuse holder, 5 x 20 mm, 10 A, 250 V, snap-in, 0031.1914
Unit Price (€ / pc.)
3.2130 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,606.50 € *
Price list
Quantity
Price per unit*
500 pcs.
3.2130 €
1000 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, 0031.1914, SCHURTER
Shock-safe fuse-holder with fingergrip cap, panel thickness: 1.8 - 3.0 mm, IP 40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Version | closed | |
| Connection | solder connection | |
| Type of mounting | snap-in | |
| Installation diameter | 13 mm | |
| Version of the cap | finger grip | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
