0031.1351 | SCHURTER
Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 0031.1351
Unit Price (€ / pc.)
8.4371 € *
Available: 406 pcs.
Leadtime: 7 Weeks **
Total Price:
8.44 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4371 €
10 pcs.
7.4256 €
100 pcs.
6.5093 €
200 pcs.
6.2594 €
400 pcs.
6.0095 €
*incl. VAT plus shipping costs
**Subject to prior sale

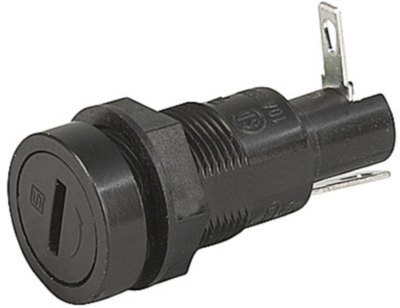

Fuse holder, 0031.1351, SCHURTER
Shock-safe fuse-holder with slotted cap, 5 x 20 mm, end-terminal position: straight to fuse axis, IP 67.
Technical specifications
| For Fuse | 5 x 20 mm | |
| Version | closed | |
| Connection | solder connection | |
| Type of mounting | central Mounting | |
| Installation diameter | 12 mm | |
| Version of the cap | slotted | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
