0031.1095 | SCHURTER

Fuse holder, 5 x 20 mm, 10 A, 250 V, snap-in, 0031.1095

Order No.: 46G5720
EAN: 4099889126501
MPN:
0031.1095
Series: FEF (Snap)

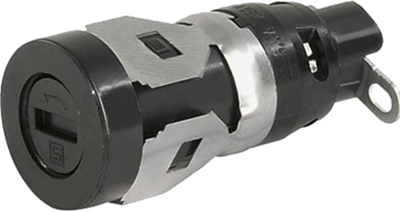

0031.1095 SCHURTER Fuse Holders Image 1
0031.1095 SCHURTER Fuse Holders Image 2
Image may differ
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Next delivery: 500 pcs. on 2025-06-27
Leadtime: 7 Weeks **
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9631 €
10 pcs.
2.6775 €
100 pcs.
2.4514 €
500 pcs.
2.2967 €
1000 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fuse holders for 5 x 20 mm G fuses, series FEF (Snap), type Schurter 0031.

Compliant with IEC 60127-6, for front snap-in mounting, bayonet lock cap with slot or finger grip; Rated voltage: 250 VAC. Rated current: 10 A. Socket material: Duroplast, UL 94 VDC0, black. Connections: tinned copper alloy. Connection type: solder terminals. Degree of protection: IP 40. Touch protection category: PC2. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.

Fuse holders with bayonet lock cap, type 0031.10.

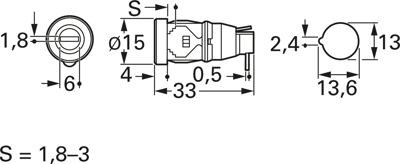

Technical attributes (type, for panel thickness (s)): 0031.1095, s 1.8 to 3.0 mm

Technical specifications
For Fuse 5 x 20 mm
Version closed
Connection solder connection
Type of mounting snap-in
Installation diameter 13 mm
Version of the cap slotted
Rated current 10 A
Rated voltage 250 V
Touch protection PC2
Degree of protection (IP) IP40
Logistics
Country of origin CH
Original Packaging Carton with 100 pieces
Customs tariff number 85363010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
