DKIH-3352-1011-NK | SCHURTER
Suppressor choke, radial, 10.8 mH, 10 A, DKIH-3352-1011-NK
Unit Price (€ / pc.)
30.1784 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
30.18 € *
Price list
Quantity
Price per unit*
1 pcs.
30.1784 €
10 pcs.
28.0602 €
25 pcs.
26.0967 €
50 pcs.
24.0142 €
*incl. VAT plus shipping costs
Subject to prior sale

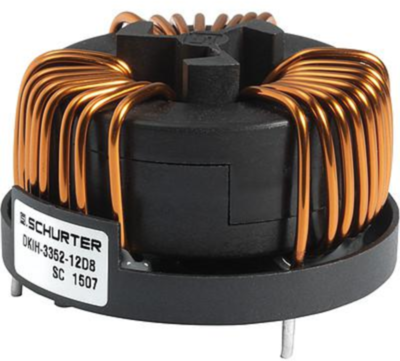

Suppressor inductor, DKIH-3352-1011-NK, SCHURTER
The DKIH-3352-1011-NK is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- 3-phase choke
- Flexible wire
- Flange for mounting onto printed circuit board
- THT-terminals
Applications
- Frequency converter
- Charge stations
- UPS-systems
- Switching power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 10 A | |
| Height | 31 mm | |
| Inductance | 10.8 mH | |
| Design | radial | |
| DC resistance | 7.5 mΩ | |
| Version | suppressor choke | |
| Tolerance | -30/+50 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
