DKFP-C21C-041N | SCHURTER

Suppressor choke, 1.5 mH, 4 A, DKFP-C21C-041N

Order No.: 59P8864
EAN: 4099889002294
MPN:
DKFP-C21C-041N
Series: DKFP
DKFP-C21C-041N SCHURTER Fixed Inductors

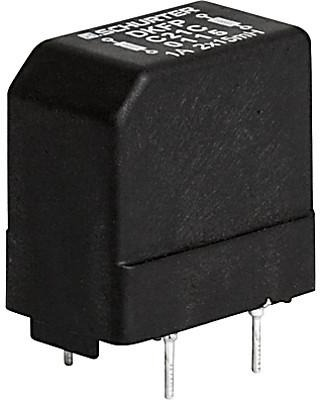

Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 40 Weeks
Total Price:
1.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6898 €

Fixed inductor, DKFP-C21C-041N, SCHURTER

The DKFP-C21C-041N is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • Current compensated choke
  • THT-terminals
  • High inductance and compact dimensions
  • Multiple pin configurations

Applications

  • Attenuation of common mode interferences
  • Designed for 230/400 VAC applications
  • DC drives and stepper motor controls
  • Switching power supplies
Technical specifications
DC current 4 A
Width 16 mm
Height 26 mm
Length 23.5 mm
DC resistance 30 mΩ
Version suppressor choke
Tolerance -30/+50 %
Inductance 1.5 mH
Logistics
Country of origin LK
Customs tariff number 85366990
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
