DKFP-6248-02D5 | SCHURTER

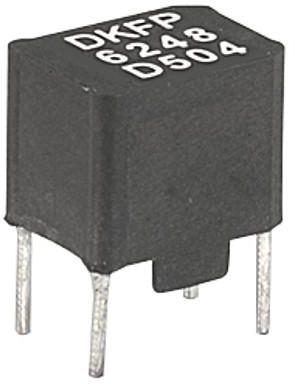

Suppressor choke, radial, 0.5 mH, 2 A, DKFP-6248-02D5
Unit Price (€ / pc.)
3.6057 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3.61 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6057 €
10 pcs.
3.2487 €
50 pcs.
2.9274 €
100 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale
Fixed inductor, DKFP-6248-02D5, SCHURTER
The DKFP-6248-02D5 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- THT-terminals
- High inductance and compact dimensions
- Multiple pin configurations
Applications
- Attenuation of common mode interferences
- Designed for 230/400 VAC applications
- DC drives and stepper motor controls
- Switching power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 10.7 mm | |
| DC current | 2 A | |
| Height | 10.5 mm | |
| Inductance | 0.5 mH | |
| Width | 8.2 mm | |
| Design | radial | |
| DC resistance | 50 mΩ | |
| Version | suppressor choke | |
| Tolerance | -30/+50 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Country of origin | LK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
