DFSG-25-0001 | SCHURTER

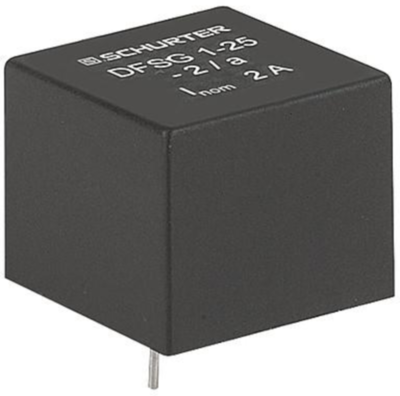

Saturating choke, radial, 2 A, DFSG-25-0001
Unit Price (€ / pc.)
4.3792 € *
Standard delivery time from the manufacturer is: 26 Weeks
Saturating choke, DFSG-25-0001, SCHURTER
The DFSG-25-0001 changes impedance at the moment of switching, and can be used to attenuate differential-mode noise or symmetrical interference as generated in fast switching high current applications.
Features
- Saturating choke
- THT-terminals
- Fully potted resign
- Based on laminated iron core
Applications
- Phase angle control circuits with thyristors, triacs or transistors
- The choke acts at its optimum when it is mounted directly at the interference originator (thyristor, triac)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 19 mm | |
| Version | saturating choke | |
| DC resistance | 260 mΩ | |
| Width | 22.5 mm | |
| Design | radial | |
| Length | 22.5 mm | |
| DC current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
| Country of origin | LK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
