DFKH-14-0001 | SCHURTER

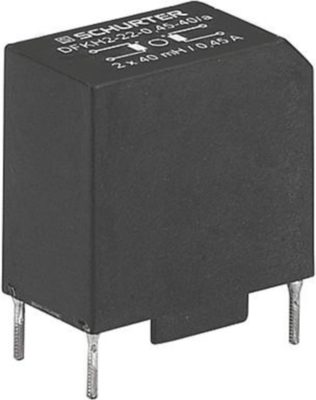

Suppressor choke, radial, 100 µH, 600 mA, DFKH-14-0001

Order No.: 59P8823
EAN: 4099889001907
MPN:
DFKH-14-0001
Series: DFKH
DFKH-14-0001 SCHURTER Fixed Inductors
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8445 €

Suppressor inductor, DFKH-14-0001, SCHURTER

The DFKH-14-0001 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • Current compensated choke
  • 1-phase choke
  • THT-terminals
  • Inductor vertically positioned in housing

Applications

  • Attenuation of common mode interferences
  • Designed for 230/400 VAC applications
  • DC drives and stepper motor controls
  • Switching power supplies
Technical specifications
Filter Property Value
Length 3.9 mm
DC current 600 mA
Height 2.5 mm
Inductance 100 µH
Width 2.5 mm
Design radial
DC resistance 600 mΩ
Version suppressor choke
Tolerance -30/+50 %
Logistics
Property Value
Customs tariff number 85045000
MSL MSL 1
Country of origin LK
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
